Drafting Commercial Ships into the Russian Navy

"Alican Deval" (aka "Dvinitsa-50") underway in Novorossiysk - October 10, 2015
(credit: Oleg Sushkov)

Moscow apparently has figured out that landing ships are not the most effective way to move large numbers of vehicles and other military hardware to Syria. According to a blog linked to the Center for the Analysis of Strategy and Technology, as many as eight commercial vessels were recently purchased for use by the Russian Navy. The ships will be manned by a mix of military and civilian sailors. As many have noted, military ships, which include the newly acquired commercial vessels flying the Russian Navy flag, are not subject to at-sea inspections.

Last AIS position broadcast for "Alican Deval" -- October 11, 2015

The first newly acquired cargo vessel, "Alican Deval", arrived in Novorossiysk on October 7 and was last noted transmitting AIS from the same location at 13:58 UTC on October 11. The last position placed it at the Novorossiysk Trans-Shipping Transportation/Expeditionary Company (NUTEP, for short) [Новороссийское Узловое Транспортно-Экспедиционное Предприятие - НУТЭП]. On October 14, the vessel, now renamed "Dvinitsa-50", was photographed heading south through the Turkish Straits by Alper Boler (@alperboler) and Yörük Işık (@YorukIsik). To date, there have been no known AIS transmissions from a vessel named "Dvinitsa-50".

"Dvinitsa-50" (formerly "Alican Deval") heading south through the Turkish Straits -- October 14, 2015
(credit: Yörük Işık)

"Dvinitsa-50" (formerly "Alican Deval") heading south through the Turkish Straits -- October 14, 2015
(credit: Alper Boler)

A second vessel, which arrived in Novorossiysk by October 10, has been renamed "Kyzyl-60". On October 18, it transferred from NUTEP to the neighboring Novorossiysk Naval Base and could depart port at any time to begin its first cargo transfer mission to Syria. And a third vessel bearing the new name "Kazan-60" also appeared in Novorossiysk by October 18. As with "Dvinitsa-50", neither of these two new additions to the Russian Navy are broadcasting via AIS.

Formation of crews to man these new naval auxiliary ships only recently began. However, not all prospective crew members are satisfied with conditions on board the former commercial vessels. On October 9, a boiler plant technician on the Russian Black Sea Fleet's cable ship "Setun" was ordered to report to Novorossiysk to serve as Third Engineer on "Dvinitsa-50". After a brief inspection he determined that only two of the ship's three diesel generators worked, but both of them also had problems. Having discovered other material issues, the sailor complained up the chain of command, where his complaints were met with profanity and accusations of him being a coward and a traitor. On October 10, he signed a resignation letter that effectively ended his civilian naval career. He has since appealed to the Black Sea Fleet Prosecutor's Office to look into the incident.

Kalibr vs Klub: There's a Difference

Defense News' "Is Caspian Sea Fleet a Game-Changer?" article from October 11 demonstrates a confusion between Russian missile systems that has plagued other articles published following the October 7 launch of long-range land-attack cruise missiles by Russian Navy ships operating in the Caspian Sea. The main thing to remember is that Kalibr is the name assigned to the Russian domestic version of a missile complex that can launch several types of missiles (3M14 [SS-N-30 land-attack cruise missile], 3M54 [SS-N-27 anti-ship cruise missile], and 91R [antisubmarine missile]), while Klub is the name assigned to the export version of the same missile complex.

Other confusing points include:

"The inland sea features naval forces from the four bordering countries — Azerbaijan, Iran and Turkmenistan in addition to Russia..."
-- It's actually five, if you include Kazakhstan.

"...the Kalibr long-range version has only recently reached operational status."
-- Relatively recently; it reached operational status when the first launch platform, Gepard-class frigate "Dagestan", was commissioned in November 2012.

"But until now it was not clear that smaller ships, including the Project 21631 Buyan-M corvettes that also took part in the Oct. 7 attacks, could operate the weapon."
-- There should be nothing unclear about this. The first two units of the Sviyazhsk class of guided missile patrol combatants, "Grad Sviyazhsk" and "Uglich", were delivered to the RF Ministry of Defense in December 2013 after sea trials and state testing, which included launches of the SS-N-27 and SS-N-30. The ships were subsequently commissioned into the RF Navy and joined the Caspian Flotilla in July 2014. The third unit, "Velikiy Ustyug" was delivered to the RF Ministry of Defense in November 2014 following a similar sea trials + state testing period; it was commissioned into the RF Navy and joined the Caspian Flotilla the next month.

"This was not a missile seen as being normally carried by the corvettes, which had [shorter-range] Klub missiles as opposed to the land-attack version..."
-- None of the Sviyazhsk ships were ever armed with the Klub missile complex.

"So far, the Vietnamese versions do not seem to be armed with the Kalibr missile."
-- Again, Kalibr = domestic; Klub = export.

"The six Buyan-M corvettes were known to be fitted with an eight-cell vertical launch system mounted amidships, capable of launching the SS-N-27 Klub[1] missile, but this is the first demonstration[2] of their ability to use the longer-range Kalibr."
-- [1] Should be 'Kalibr'; [2] Except for all the launches performed as part of pre-acceptance state testing.

In Putin's Own Words: Why We Launched Kalibr Missiles

Russian President Vladimir Vladimirovich Putin - October 2015
(credit: All-Russia State Television and Radio Broadcast Company)

Today's broadcast of Voskresnyy Vecher [Sunday Evening] led with an interview with President Vladimir Putin that included a couple interesting items related to Russia's presence in Syria and the October 7 launch of SS-N-30 [3M14] land-attack cruise missiles.

[video time 02:00-04:05]
"I would like to confirm the fact, which is already known, that we warned our partners - our American partners, many other partners, especially those in the region - of our intentions and our plans in advance. There are those who say we did this very late. But I would like to point out that no one ever informs us in advance when they are planning such operations or when such operations begin. But we did... out of good will, out of expediency, and with the hope of showing that we are open to working together. I want to emphasize again that we are operating in full compliance with international law based on a request by official leaders of the Syrian Arab Republic. All other countries that to date have taken part in such actions are doing so illegally because there has been no resolution from the United Nations Security Council to do so, and there has been no official request from Syrian leaders. I would like to remind you that by the time our operation began, 11 countries had already carried out various strikes against Syria, in one way or another. And all this has been going on for more than a year. Understanding and knowing this, we informed our partners and recommended they work with us. The simplest thing would be to join our effort, thereby legalizing their own actions on Syrian territory. Because we have a mandate from official leaders, the simplest thing would be to join us and operate within the framework of this mandate. Unfortunately, we have not yet come to an agreement on this with our partners and colleagues. But we haven't lost hope that this can still be achieved."

[video time 09:49-11:37]
"Kalibr missiles: they have not been in service very long - since 2012. They have a range of 1,500 kilometers, as a matter of fact, which has already been stated. But these are, of course, technologically advanced, high-precision modern weapons. We plan to rearm the entire Russian military not only with these types of missiles, but also with this new generation of land-based hardware and aviation technology. These are truly complex systems, and, as their employment has proven, extremely effective... As you yourself said, [they flew] over the territory of other nations. Along the flight path, they made 147 turns, flew at altitudes of between 80 and 1,300 meters... at a speed comparable to a jet aircraft - everyone knows this. The thing is that this isn't classified information. In principle, all of our partners, at a minimum at the expert level, are aware that Russia has such [high-precision] weapons. It's one thing, at the expert level, to know that Russia supposedly has such weapons. It's another thing to be convinced that: first - they really exist and our defense industrial complex is producing them; second - that they are of high quality; third - that there are well-trained, well-prepared people who can effectively employ them; and fourth - that Russia has the will to use them if it satisfies the national interests of our state and our people."

It won't take long for others to see through Putin's own words that a driving factor for launching land-attack cruise missiles was, in fact, to prove to the rest of the world that Russia can and will carry out such launches if doing so satisfies Russia's interests -- despite the hefty price tag of the missiles.

Impending Ballistic Missile Launch From Sea of Okhotsk

Flights bans for probable SS-N-18 ballistic missile launch -- October 12-17, 2015

Flight bans have been declared for three areas in the Sea of Okhotsk for the period of October 12 through October 17:

P6193/15 - TEMPO DANGER AREA ACT WI:
 1. 475400N 1510600E-480600N 1514000E-475200N 1515800E-473600N 1512100E-475400N 1510600E.
 2. CIRCLE RADIUS 50KM CENTRE 5249N 14617E.
 3. CIRCLE RADIUS 51KM CENTRE 5709N 14033E. SFC - UNL, DAILY 0600-1300, 12 OCT 06:00 2015 UNTIL 17 OCT 13:00 2015. CREATED: 08 OCT 08:24 2015

The number and arrangement of the three areas are identical to those used for an SS-N-18 Stingray submarine-launched ballistic missile (SLBM) event on May 8, 2014 [NOTAM P2906/14 (May 8-11, 2014)], during which Delta III-class nuclear-powered ballistic missile submarine "Podolsk" launched a single SLBM from a submerged location in the Sea of Okhotsk.

"Svyatoy Georgiy Pobedonosets"
(credit: TASS)

The Russian Pacific Fleet currently has two operational Delta III submarines - 36-year-old "Podolsk" and 35-year-old "Svyatoy Georgiy Pobedonosets". A third unit, 33-year-old "Ryazan", has been undergoing service life extension work at Zvezda Far East Shipyard since 2011. With the arrival of Dolgorukiy-class nuclear-powered ballistic missile submarine "Aleksandr Nevskiy" in Rybachiy on September 30, Moscow can begin thinking about retiring the veteran "Podolsk" and "Svyatoy Georgiy Pobedonosets". As such, next week's SLBM event may mark the final launch for one of them.

Combat-Proven: Russia’s SS-N-30 (3M14) Land-Attack Cruise Missile

"Dagestan" frigate launches multiple land-attack cruise missiles against Syrian targets -- October 2015
(courtesy: RF Ministry of Defense)

According to Russian Ministry of Defense reporting, during the nighttime hours between October 6 and October 7, Russian Navy ships positioned in the southwestern Caspian Sea launched 26 long-range land-attack cruise missiles (LACM) against 11 reported Islamic State (ISIL) targets in the Syrian provinces of Al-Raqqah, Aleppo, and Idlib. The targets were characterized as “factories for manufacturing [artillery] shells and explosives, command posts, storage facilities for munitions, armaments, and petroleum-oil-lubricants (POL), as well as terrorist training camps.”

The launch platforms were identified as Gepard-class guided missile frigate “Dagestan” and Sviyazhsk-class guide missile patrol ships “Grad Sviyazhsk”, “Uglich”, and “Velikiy Ustyug”. This constitutes the entire inventory of LACM-armed ships in the Caspian Flotilla. Not mentioned in any of yesterday's reporting was the departure of Astrakhan-class patrol combatant "Makhachkala" (not LACM-armed) and Finik-class hydrographic vessel "Anatoliy Guzhvin", which departed port a few days ago to conduct "scheduled combat service missions." It is possible that these two ships provided some level of support for the strike operation.

Defense minister Sergey Shoygu briefs President Putin on Russian military actions in Syria -- October 7, 2015
(credit: RF Presidential Public Affairs)

The announcement coincided with a meeting between defense minister Sergey Shoygu and Russian President Vladimir Putin in which Shoygu provided an update on Russian military actions in Syria to support the Syrian government.

Simulation of missile flight route over northern Syria
(credit: RF Ministry of Defense)

The computer-generated simulation of the flight route indicates the missiles flew within a dozen or so miles of the southern Turkish border, but within Syrian airspace. It is important to note that the appearance of a TU-160 Blackjack bomber icon at the beginning of the simulation (00:57-00:59) may indicate this was simply a simulation used for mission planning purposes only and not the actual approved mission profile (the MOD made no mention of a TU-160 flying over the Caspian Sea).

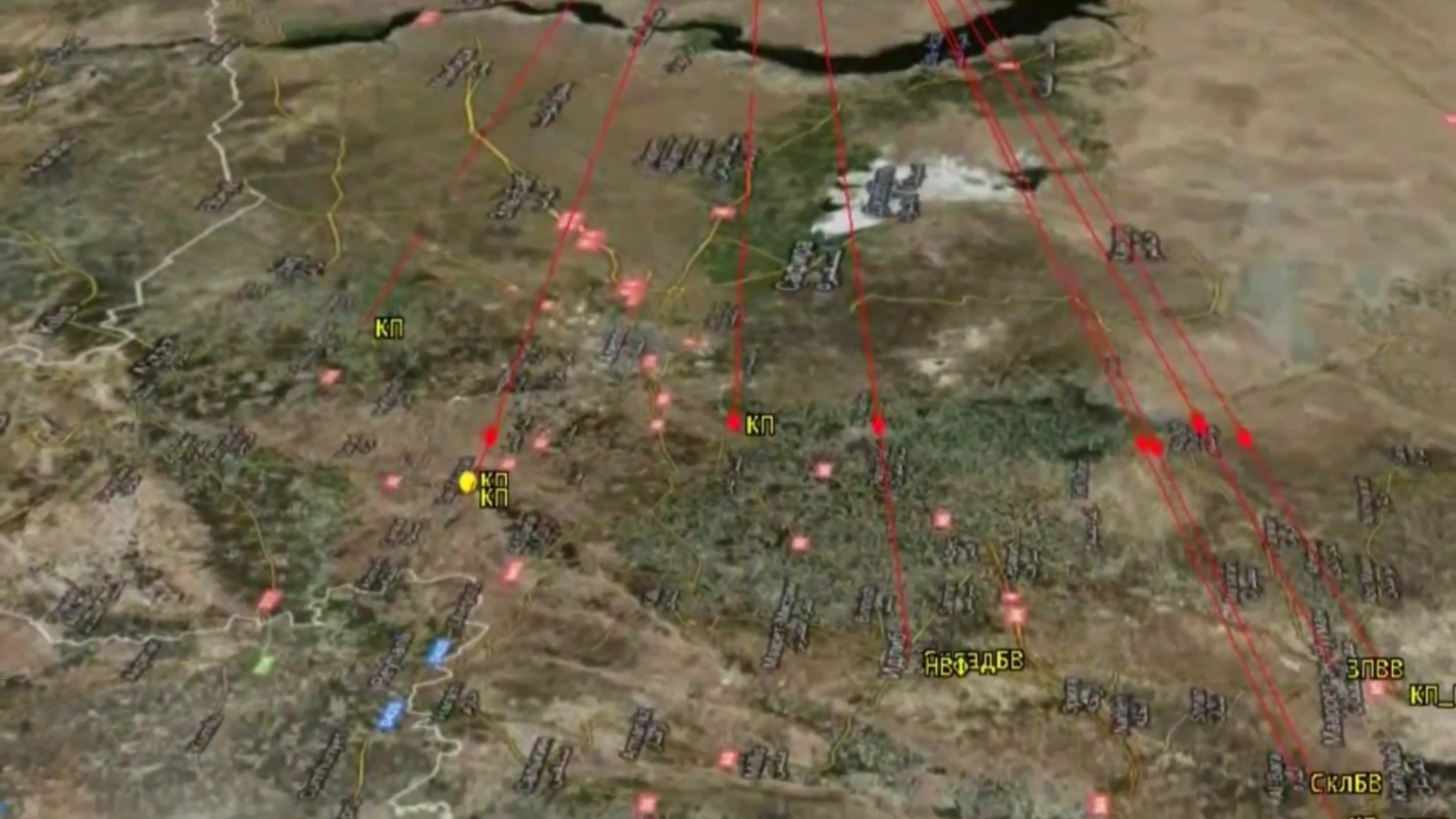

Simulation of missile flight route over northern Syria
(credit: RF Ministry of Defense)
Key: ЗПБВ [factories for manufacturing munitions and armaments]; КП [command post]
НВФ [illegal armed formation (group)]; СклБВ [storage facilities for munitions and armaments]

The MOD video also shows that all of the missiles were launched with an interval between launches of less than five seconds, as well as "Dagestan" conducting a five-missile salvo launch. A video uploaded to Twitter reportedly shows two of the missiles in flight. Another video uploaded to YouTube reportedly shows damage caused by one of the missiles striking a target near Aleppo.

General-Colonels Andrey Kartapolov (l) and Viktor Bondarev (r) brief reporters -- October 7, 2015
(credit: RF Ministry of Defense)

Yesterday afternoon, General-Colonel Andrey Kartapolov (Chief, Main Operational Directorate – Russian Federal General Staff) confirmed the details of the LACM strikes. He also stated that intelligence information received from Iran, Iraq, and Syria is being used to target strike locations.

«Все объекты для поражения нами тщательно изучаются, при этом используются данные космической и радиоэлектронной разведки, съёмки с беспилотных летательных аппаратов, информация, полученная по данным радиоперехвата. Мы также используем данные сирийской, иранской и иракской разведок, в том числе из агентурных источников» , — подчеркнул Андрей Картаполов в беседе с журналистами.

“All strike locations are carefully studied; additionally, data from space and radio-electronic reconnaissance, footage from unmanned aerial vehicles, and information received through communications intercepts, are used. We also use data from Syrian, Iranian, and Iraqi intelligence, to include from their human sources,” Andrey Kartapolov emphasized in his discussion with reporters.

Indeed, the four nations have established a joint information center in Baghdad for coordinating actions in the fight against ISIL. As the video released by the RF MOD indicates, the missiles flew through Iranian and Iraqi airspace, something that certainly would have been coordinated via the Baghdad center.

If one assumes that a new long-range land-attack cruise missile is an expensive commodity, why would you employ it if there was a cheaper way of striking a target? The Russian defense ministry has been touting the successes that its Syria-deployed air assets have achieved since strikes first began last week. As long as Russian aircraft have unfettered access to the targets from the air, they can use much cheaper ordnance than the SS-N-30.

According to one source, India paid USD 6.5 million per unit for the export version of the missile, but that sounds exceedingly high: a single U.S. Tomahawk LACM only cost USD 1.59 million in FY2014. Despite the possibly overstated cost in the report, it is logical to assume that missiles cost more than air-delivered bombs in Russia, as they would anywhere else.

An analyst at the Institute for the Study of War in Washington says the LACM strike “was specifically done to show bravado... it’s chest-thumping.” Well, that’s at one end of the spectrum. At the other end of the spectrum, some analysts assert that Russia is using this opportunity to prove its latest military weaponry can be employed to solve modern day missions. And still others state that nearly all of the aircraft currently deployed to Syria would be needed to achieve the same level of damage that the 26-missile strike achieved, and that the departure of this large number of aircraft at nearly the same time would have tipped off someone about the operation. Somewhere in the middle is the oft-used “strategic messaging” explanation. And way off in left field is Deputy Prime Minister Dmitriy Rogozin's explanation:

"A gift for ISIL for digging graves"
(credit: Dmitriy Rogozin/Twitter)

Of course, some would argue that the SS-N-30 LACM strike was well-timed to serve as a gift, of sorts, to President Vladimir Vladimirovich Putin, who celebrated his 63rd birthday on October 7.

Wouldn’t it have been simpler and cheaper to give him a new pony?

"Yauza" Heading to Black Sea

AIS tracking of "Yauza" -- September 10-27, 2015

Since September 10, a vessel named "Yauza" has been making its way from Severomorsk, Russia, to the Turkish Straits, presumably headed for the Black Sea. The day before getting underway, the vessel was at a Severomorsk weapons handling facility (home of the 571st Technical Missile Base), where it was located between 0946 UTC on September 9 and 0456 UTC on September 10. What activity was conducted there is a mystery.

AIS tracking of "Yauza" showing it at a Severomorsk weapons handling facility on September 8-10, 2015

The vessel has made no known port calls since leaving Severomorsk. "Yauza" was noted tracking north through the Turkish Straits today when it unexpectedly turned around between 1222 UTC and 1510 UTC. The vessel continued tracking to the southwest until 1647 UTC when it reached a holding point located ~14 nautical miles east of the Greek Island of Lemnos.

AIS tracking of "Yauza" on September 27, 2015

Given the name and departure port, this appears to be the Northern Fleet cargo and personnel vessel "Yauza". If true, its apparent voyage to the Black Sea would be unusual and could be related to the ongoing transfer of Russian military personnel and materiel to Syria.

Amguema cargo vessel "Yauza" in 2007 -- before conversion
credit: Denis Nemetovskiy

Amguema-class cargo vessel (Rus: Project 550M special-purpose large naval dry cargo vessel) "Yauza" was built at Kherson Shipyard for the Soviet Navy. It was laid down in April 1974 and joined the Northern Fleet in 1975. In 1988, the vessel was resubordinated to the Ministry of Defense's 12th Main Directorate, which oversees military nuclear safety and security programs. Since then, the vessel had been used to transport cargo between the Russian mainland and Novaya Zemlya.

Commemorative booklet celebrating Nerpa Shipyard's 50th anniversary in September 2015
credit: Nerpa Shipyard

On April 3, 2008, the Ministry of Defense signed a contract (253/05/7/K/0329-08) with Nerpa Shipyard in Snezhnogorsk (Murmansk Oblast) to perform capital repairs, modernization, and conversion of "Yauza", to include increasing the number of passengers it could carry to 98. The vessel's superstructure was lengthened, and two new cranes were installed: one on the bow (Liebherr CBW 60/16, 60 metric ton lift capacity) and one on the stern (9 metric ton lift capacity). Other changes included the installation of new main (4 х 1,500 kW) and emergency (1 х 200 kW) diesel generators, steam boilers (2 x 4,000 kg/h), and modern control, safety, and communications systems. The vessel has four cargo holds.

Amguema cargo + passenger vessel "Yauza" in June 2014 -- after conversion

On October 8, 2012, “Yauza” was relaunched. The vessel commenced post-modernization factory sea trials in June 2014 and was turned back over to the Northern Fleet in May 2015. In July, employees of the 51st Central Design and Technology Institute of Ship Repairs received awards for developing design documentation for the vessel's repairs and modernization.

The “Yauza” conversion was not completed without a few scandals. In October 2013, investigators claimed that Nerpa Shipyard had not completed RUB 415 million in work for which it had already been paid. Additionally, the price of the original contract had grown an additional RUB 159.8 million. Contracts fulfilled just between July 2013 and December 2014 totaled RUB 28,006,934, including RUB 6,000,000 for round-trip towing services between Nerpa Shipyard and Severodvinsk in 2014. The final cost of the project reportedly more than doubled from the original RUB 1.6 billion to nearly RUB 4 billion. In July 2015, former Nerpa Shipyard general director Aleksandr Gorbunov was sentenced to four years in prison and fined RUB 600,000 for falsely claiming the shipyard had completed repairs on "Yauza" for which it received RUB 10 million. In September, shipyard employees were still waiting to be paid salaries for June through August. When one worker asked via social media where the money for employees' salaries had disappeared to, another responded it had "sailed away" with "Yauza".

Russian Navy Exercise in Eastern Mediterranean Sea

Flight bans (yellow) and flight route restrictions (green) for Russian Navy combat drills -- September 30-October 7, 2015

Amidst the ongoing transfer of military personnel and materiel from Russia to the Syrian port of Tartus and the deployment of Russian aircraft to Syria comes the announcement that Russian Navy ships will hold drills in the eastern Mediterranean Sea in September and October. According to a September 24 Russian defense ministry press release, Slava-class cruiser "Moskva", Kashin-class destroyer "Smetlivyy", Alligator-class landing ship "Saratov" and an unknown number of auxiliary vessels will conduct anti-submarine, anti-air, and anti-ship warfare drills in the eastern Mediterranean Sea in the coming weeks; "Moskva" will serve as the command ship for the exercise.

Flight bans and route restrictions for the exercise were announced in early and mid-September:

A1106/15 - RUSSIAN NAVY EXERCISE (ROCKET TEST FIRINGS) WILL TAKE PLACE IN AREA:
344400N0345800E
351300N0345800E
351300N0353300E
344400N0353300E
THE AREA INCLUDES BUFFER ZONE. SFC - FL660, SEP 30 AND OCT 05-07 0500-1500, 30 SEP 05:00 2015 UNTIL 07 OCT 15:00 2015. CREATED: 03 SEP 07:25 2015

A1108/15 - DUE TO RUSSIAN NAVY EXERCISE AS REFERRED IN NOTAM LCCC A1106/15 THE FOLLOWING AIRWAYS WILL BE CLOSED BETWEEN SFC-FL660: 1.W/UW17 (BALMA-NIKAS)
2.R/UR78, M/UM978 (ALSUS-NIKAS).
SEP 30 AND OCT 05-07 0500-1500, 30 SEP 05:00 2015 UNTIL 07 OCT 15:00 2015. CREATED: 03 SEP 07:30 2015

A1166/15 - RUSSIAN NAVY EXERCISE (ROCKET TEST FIRINGS) WILL TAKE PLACE IN AREA:
345601N0300000E
352206N0300000E
352206N0303145E
345601N0303145E
THE AREA INCLUDES BUFFER ZONE. SFC - FL660, 01-07 0500-1700, 01 OCT 05:00 2015 UNTIL 07 OCT 17:00 2015. CREATED: 17 SEP 09:55 2015

A1167/15 - DUE TO RUSSIAN NAVY EXERCISE AS REFERED IN NOTAM LCCC A1166/15 THE FOLLOWING AIRWAYS WILL BE CLOSED BETWEEN SFC-FL660:
1.G/UG18, L/UL609 (ALKIS-MAROS)
2.R/UR78, M/UM978 (TOSKA-TOBAL).
01-07 0500-1700, 01 OCT 05:00 2015 UNTIL 07 OCT 17:00 2015. CREATED: 17 SEP 10:03 2015

"Moskva" departing Sevastopol on September 24, 2015
(credit: A. Balabin)

Flight bans and route restrictions for Russian Navy activity in the eastern Mediterranean Sea have become a routine occurrence. Similar activity took place as far back as July 2012 (A0614/12) and more recently in July 2015 (A0819/15 + A0820/15 + A0821/15 + A0822/15) and August 2015 (A0959/15 + A0964/2015).
